New construction is a rare blank canvas. In Greensboro, that canvas includes heavy clay soils, four distinct seasons, and water rules that shift with summer heat and drought advisories. Getting irrigation installation right at the start makes the difference between a landscape that coasts through July with even, deep-rooted growth and one that browns out at the first string of 95-degree days. I’ve spent enough seasons walking new homeowners through soggy beds, wilting turf, and surprise water bills to know that smart planning and careful execution pay for themselves.
Piedmont summers stack humidity on heat, which tricks people into thinking plants have enough moisture because the air feels thick. The soil tells a different story. Much of Greensboro sits on dense red clay with low infiltration. Water tends to run off instead of soaking in, and when it does soak, it lingers. Pair that with spring downpours and fall drought spells, and you have a landscape that needs measured, steady water rather than occasional deluges.
For irrigation installation, that means two guiding principles. First, apply water slowly enough to match the soil’s absorption rate. Second, design zones around plant needs and exposure, not just square footage. The best systems in our area favor matched precipitation spray heads on small turf areas, pressure-regulated rotors on larger lawns, and drip for shrub and foundation beds. Wide arcs are tempting for quick coverage, but in clay they can throw more water than the ground can digest.
A builder pours footings and sets trenches once. If irrigation planning happens simultaneously, you avoid saw-cut driveways, core-drilled sidewalks, and hacked-up new sod. I ask for a landscape plan as soon as the grading plan is approved. From there, we layer irrigation design onto real constraints: utility easements, downspouts and drainage swales, hardscape routes, and future tree canopy.
Rough-in sleeves under walks and driveways cost a fraction of full-bore trenching later. Futureproofing also includes a dedicated exterior GFCI for the controller, a protected spot for the backflow preventer with clearances, and a clean tie-in point for the water service. When the plumber knows we’ll be tapping at a specific location, we can place the backflow so it is both code-compliant and discreet, rather than hanging out front like a fire hydrant.
The backbone of any irrigation system is the available flow rate and pressure. In Greensboro, municipal pressure can range widely from neighborhood to neighborhood. I never trust paper numbers alone. A simple bucket test at the hose bib and a pressure gauge on the spigot give you a baseline. On a new build before meter installation, coordinate with the builder or plumber to test at the main once it’s live, or design with conservative assumptions and verify before final installation.
You’re looking for two figures: static pressure and working pressure under flow. Spray zones like to see around 30 psi at the head, rotors often perform best near 45–55 psi, and drip systems around 25–30 psi after pressure regulation. If your static pressure is high, you’ll need pressure regulation at the valve or the head. If it’s low, you might change head type, reduce zone size, or consider a booster pump. Matching the system to the actual hydraulics prevents misting, uneven throw, and the classic donut of green around a head with brown patches between.
North Carolina plumbing code requires a testable backflow preventer for irrigation connected to potable water. In Greensboro, you’re looking at a reduced pressure zone (RPZ) or pressure vacuum breaker (PVB), with the choice shaped by elevation differences and freeze risk. An RPZ offers stronger protection, especially on sites where the irrigation backflow could sit lower than the main floor, but it also needs a drain path for discharge. A PVB requires it to sit at least a foot above all downstream piping.
Placement matters for maintenance and winterization. I set backflows in a side-yard with easy access, away from bedrooms if possible because they can chatter during flow. Strap it to a post or wall, leave room for testing ports, and make sure the homeowner knows the isolation valves.
The fastest way to blow a water budget is to mix turf with shrub beds on one zone. Turf, especially warm-season varieties like bermuda or zoysia common in Greensboro, needs shallower, more frequent cycles during establishment and deep, infrequent cycles thereafter, depending on season. Shrubs and trees prefer a slower drip to reach the root ball and the surrounding soil. Sun-baked south-facing slopes drink differently than shaded north-side beds that stay damp. Build zones around these differences.
For a typical new construction lot, I often end up with a handful of turf zones, each sized by slope and exposure, and several drip zones for front foundation, rear perimeter, and ornamental beds. Vegetable plots, if planned, get their own dedicated drip with a shutoff valve for seasonal use. It’s not uncommon to exceed eight zones even on moderate lots because right-sized zones give you control and efficiency.
Sprinkler irrigation shines on open turf. Rotors handle larger areas with a slower, steady application that suits clay. Modern MP rotator-style nozzles are especially helpful where you want matched precipitation and reduced misting. For tight turf strips along driveways or between sidewalk and curb, side-strip and end-strip spray nozzles work, but they need careful spacing to avoid over-spray.

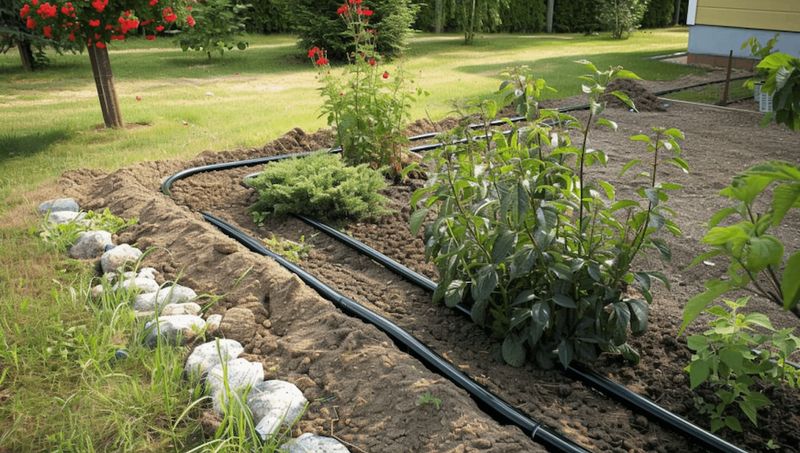

Drip is your workhorse for beds and tree rings. Inline drip with 0.6 gph emitters spaced at 12 or 18 inches provides even coverage under mulch. For specimen trees, a loop around the dripline with adjustable emitters lets you scale water as the tree grows. Drip reduces evaporation and prevents water on leaves, which lowers disease pressure on roses, hydrangeas, and many perennials. It also plays well with mulch, which Greensboro landscapes need to moderate clay soil temperatures and moisture swings.
Greensboro’s rainfall is lumpy. You can get three inches in one afternoon and then dry skies for two weeks. Weather-based controllers that pull local evapotranspiration data and forecast precipitation help prevent watering after a storm. Soil moisture sensors add another layer by measuring actual conditions under the mulch. I like to pair a smart controller with a hard-wired rain/freeze sensor as a fail-safe.
Look for controllers that allow seasonal adjustment, cycle-and-soak programming, and individual zone runtimes. Cycle-and-soak is especially valuable on clay: running a 15-minute spray zone as three 5-minute cycles with 20-minute breaks increases infiltration and reduces runoff down the driveway. Homeowners see the difference not just in plant health but on the sidewalk. Less splashed soil, fewer stains, and no standing water at curb cuts.
When a system is tuned to Greensboro conditions, the benefits show up across the board. Turf holds color through July and August without spongy feel underfoot. Beds push new growth rather than surviving. Weeds are less aggressive because we’re not throwing water where it doesn’t belong. Water bills are predictable. Maintenance calls are about adding a new garden area or fine-tuning, not emergency fixes.
There’s also a resale angle. Buyers here look for a yard they can maintain without guessing at hose schedules. An efficient, documented system with labeled zones and a smart controller reads like a well-maintained HVAC system. It’s not flashy, but it calms the mind during a walk-through.
Sequence matters during new construction. Before sod arrives, trenching is straightforward and cheaper. I coordinate to install mainline and lateral lines after rough grading, before final prep. That avoids compacting freshly prepped soil and reduces root damage to young trees. Where sidewalks and driveways are planned, we place 2- to 3-inch PVC sleeves for future tubing and wire pulls. In Greensboro’s freeze-thaw cycles, rigid sleeves fare better than corrugated when buried under vehicles.
Wire routing deserves respect. I avoid parallel runs with power to reduce induced noise on sensor lines, use waterproof connectors rated for direct burial, and leave a service loop at valves and the controller. Documentation helps months later when someone wants to add a fire pit or move a bed edge. A simple site sketch showing valve boxes, mainline path, and spare sleeves saves guesswork.
Mismatched heads are a common reason for uneven watering. Keep like with like. If a zone uses MP rotators, it should be all MP rotators with matched precipitation rates. Head-to-head coverage, where spray from one head reaches the next, is the design target. In reality, property lines and hardscapes complicate the math, so you tune nozzle sizes and arcs to avoid throwing water onto fences and siding. With Greensboro clay, a little under-throw corrected by runtime beats over-throw that runs off or causes mildew on a north-facing wall.
Pop-up height matters near new sidewalks. Four-inch pop-ups are standard for turf, but on sloped lawns or with tall varieties, six-inch can prevent grass from blocking spray. Stainless-steel risers or check valves in low areas keep heads from draining out and pulling dirt back in, which reduces clogging.
No irrigation plan should ignore drainage. If the yard has a swale that carries stormwater to the street, keep heads out of flow paths and route drip laterals so they don’t cross areas prone to scouring. Downspouts that dump near foundation beds can create soggy spots that never need supplemental water. In those areas, I reduce emitter count or split the zone so you can water the rest of the bed without drowning a corner. French drains, catch basins, and pop-up emitters for roof water integrate with irrigation so both systems pull the same direction.
I keep an eye on soil temperature as much as air temperature. Warm-season turf wakes up when soil temps cross roughly 65 degrees. Spring programming focuses on encouraging roots with deeper, less frequent cycles. As summer heat climbs, I shift to adding a bit more water in the early morning, still avoiding evening cycles that can encourage fungus.
For shrubs and perennials, especially first-year plantings, drip runs more consistently but shorter. A typical bed might run three times per week during peak summer, 30–45 minutes per run on inline drip, then taper in September. Built-in seasonal adjust (percent scaling) is handy, but you should still review runtimes monthly. Greensboro weather can throw a wet May and a dry June in the same year.
Valve boxes deserve solid bases. A shallow bed of gravel under each box keeps them from sinking and helps drainage. Label each valve lead with heat-shrink tags. Put a spare conductor in the wire bundle from controller to manifold; you will thank yourself when adding a zone later or repurposing after a fault. Use primer and solvent cement on every PVC joint, even in low-pressure laterals. Hand-tighten threaded fittings with thread sealant designed for irrigation rather than over-taping with cheap PTFE, which can split fittings.
For drip, flush end caps on every zone and install a Y-strainer with an accessible flush port. Greensboro’s water is generally clean, but new construction often leaves fine silt in lines. Flushing at startup and again after a month clears debris before emitters clog.
Greensboro sits in a zone where hard freezes happen but not for weeks on end. Systems still need winterization. I design for an easy blowout: a quick-connect at the backflow or a capped port on the mainline downstream of the backflow for introducing compressed air. The goal isn’t to blast air at high pressure but to push water out with 50–60 psi at most, one zone at a time, until heads sputter dry. Drip zones get a longer purge at lower pressure to avoid damaging emitters.
If the system uses a PVB, I show homeowners how to open test cocks and drain the bonnet before the first deep freeze. RPZs get insulation and in some cases a small drain basin below if they’re in irrigation installation Ramirez Landscaping and Lighting a location that sees wind.
I’ve seen the same pitfalls across subdivisions. Builders install sod before irrigation, so the crew slices trenches and the seams never knit. Heads get set too low, and after the first mow they blow dirt. Controllers mount inside the garage without a surge protector, and a summer lightning storm takes them out. The irrigation tie-in taps the line before a pressure regulator for the house, so the system runs at 90 psi and mists half the water into the air.
These are solvable with sequencing and communication. Schedule irrigation right after rough grading and before sod. Set head height to finished grade plus turf thickness and check again after the first mow. Use surge protection and a dedicated outlet. Confirm the plumbing tie-in happens downstream of the home’s pressure regulator or add pressure regulation at the manifold.
Even a well-built system will need attention. Heads get kicked, valves wear, tree roots shift lines. Designing with irrigation repair in mind means accessible valve boxes, unions on backflow assemblies, and logical wire paths. Keep a folder with an as-built plan, controller credentials, zone descriptions, and a parts list. I leave homeowners with a brief walkthrough, including how to run a single zone for five minutes and how to shut the system off at the backflow in an emergency.
Greensboro’s summer thunderstorms can bring power blips that reset older controllers. Smart controllers help, but I still recommend a seasonal check-up. Spring is for cleaning filters, verifying coverage, and resetting runtimes. Mid-summer is for small tweaks and checking for fungus in turf, which can masquerade as drought stress. Fall is for reducing runtimes, shutting down annual beds, and winterization.
Costs vary with lot size, head count, controller choice, and how many sleeves and accessories you need. For a typical Greensboro new construction on a quarter-acre lot with front and back turf plus foundation beds, a professionally installed system might range from the mid-$3,000s to $7,000 or more. Add-ons like an RPZ instead of a PVB, a high-end smart controller, or complex hardscape crossings push costs higher. Builders sometimes include a basic system, but it often lacks drip in the beds and smart controls. Upgrading at build time is usually cheaper than retrofitting a year later.
The monthly water cost depends on programming and rainfall. During peak summer, a modest lawn and bed system might add $30–$70 to the bill, less if the controller respects weather data and you practice deep, infrequent watering for turf. Poorly designed systems that overspray and run too long can double that. It’s the difference between precision and habit.
Greensboro neighborhoods increasingly value reduced runoff and efficient watering. Native and adapted plantings pair well with irrigation that can ramp down as plants establish. I set new beds with heavier drip during the first growing season, then cut runtimes by a third or more in the second year. Mulch is part of irrigation strategy. Three inches of shredded hardwood over drip reduces evaporation and moderates soil temperature. Edging beds helps keep mulch from migrating and clogging heads after a storm.
For turf, right-size the lawn. Large, sun-baked front yards are water-hungry. If design allows, reduce turf to areas you use and enjoy, and shift other spaces to beds, groundcovers, or permeable hardscape. Your controller will have fewer zones fighting summer afternoons, and the yard will still look lush.
There are homeowners who do an admirable DIY job. If you have time, patience, and a willingness to learn, a smaller yard with straightforward turf can be a good project. That said, a local installer in Greensboro brings a few hard-earned advantages. We recognize which neighborhoods run low on pressure at 6 a.m., which clay pockets never drain, and which inspectors want the backflow at a specific height. We also know when the city is likely to announce voluntary restrictions and how to tune runtimes ahead of them.
If you hire out, ask for specifics. How did they calculate zone flow? What pressure will the heads see? Are the valves pressure-regulated or the heads? Where are the sleeves? Will they label zones with descriptions rather than just numbers? Are they including drip in beds or planning to spray shrubs? You can tell a lot from how they answer.
Walk the property with the water running. Heads pop up cleanly, clear the turf canopy, and retract without sticking. No spray hits siding, fences, or the neighbor’s driveway. The bed drip zones moisten the mulch evenly with no geysers from a puncture. Valve boxes sit flush with grade, lids labeled and secure. The backflow stands plumb, supported, and tested with a visible tag. The controller shows sensible names like “Front Turf South” or “Rear Beds Shade,” not Zone 1 through Zone 12. Cycle-and-soak is active for turf. The rain sensor icon displays when you test it with a quick spritz. The homeowner knows how to run a single zone for five minutes and how to shut everything off.
That’s what irrigation installation Greensboro should feel like on a new build: thoughtful, tuned to local conditions, and ready to carry the landscape through its first summer without drama. From there, it becomes routine. A small spring check, a fall winterization, occasional irrigation repair when a head meets a lawnmower wheel or a dog’s curiosity, and steady, predictable results. The lawn stops being a worry and becomes a background asset, and the beds grow into their shape with the quiet help of water delivered where it belongs, when it’s needed.
